Understanding  Installation Toto In-Wall Carrier & Plates Process

Installing a Toto wall carrier can be a game-changer for your bathroom renovation or new build. These systems provide a sleek, modern aesthetic by concealing the toilet's tank and plumbing within the wall, optimizing space and enhancing the bathroom's overall look.

In this guide, we'll walk you through the installation process of a Toto In-Wall Carrier & Plates, covering everything you need to know to ensure a smooth and successful setup.

What is a Toto Wall Carrier?

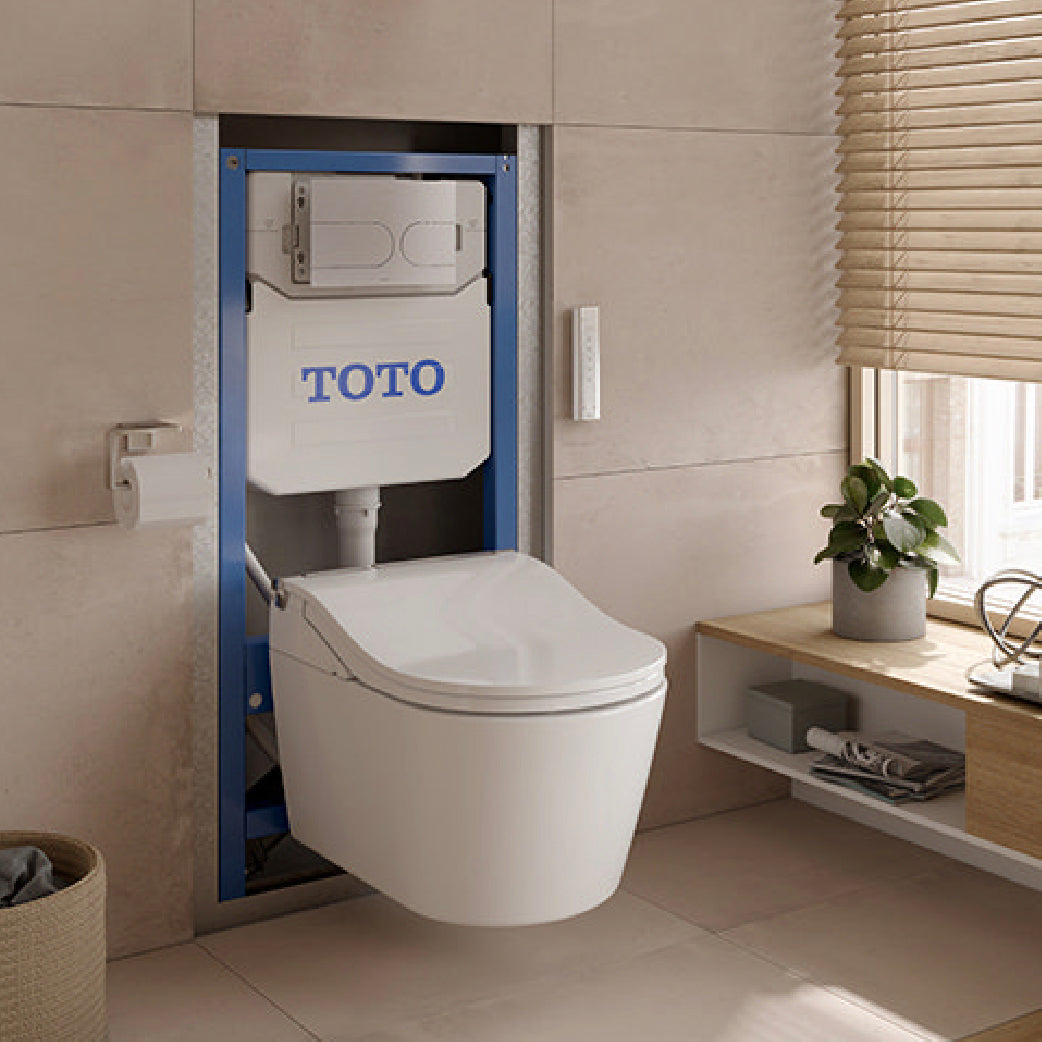

A Toto wall carrier is a robust structure designed to hold a wall-mounted toilet securely. It supports the toilet bowl and houses the water tank inside the wall, offering a minimalist design that hides unsightly plumbing. This not only improves the bathroom's appearance but also makes cleaning easier by eliminating hard-to-reach areas.

Benefits of Using Toto In-Wall Toilet Carriers

Before diving into the installation process, let's explore why you might choose a Toto In-Wall Carrier & Plates over traditional floor-mounted toilets.

Space Optimization

Wall-mounted toilets save valuable floor space, making them ideal for small bathrooms. Without the bulky tank and base, you'll gain a few extra inches, which can make a significant difference in compact spaces.

Aesthetic Appeal

With the plumbing concealed within the wall, these systems offer a cleaner, more streamlined look. This modern design can enhance the overall aesthetic of your bathroom, adding value and appeal to your home.

Easier Cleaning

Since the toilet bowl is mounted above the floor, cleaning the bathroom becomes much simpler. No more awkward bending and reaching around the base of the toilet to clean hard-to-reach spots.

Customizable Height

Toto in-wall carriers & plates allow you to install the toilet at a height that's comfortable for you. Whether you prefer a standard height or a higher position for accessibility, these systems offer flexibility to meet your needs.

Tools and Materials Needed for Installation

Before you begin, gather the necessary tools and materials. Having everything on hand will make the installation process more efficient.

• Toto in-wall carrier & plates system
• Wall-mounted Toto toilet
• Adjustable wrench
• Level
• Drill
• Screwdriver
• Stud finder
• Tape measure
• Pencil
• Safety goggles
• Dust mask

Installation Process

Now, let's walk through the steps of installing a Toto wall carrier.

Step 1: Prepare the Wall

1. Choose the Location: Decide where you want to install the toilet. Use a stud finder to locate the wall studs, as the carrier must be anchored to them for stability.
2. Mark the Area: Use a pencil and tape measure to mark the area where the carrier will be installed. Ensure the marks are level to avoid a crooked installation.
3. Cut the Wall: Wearing safety goggles and a dust mask, carefully cut out the drywall along your marks. This will create an opening for the carrier frame.

Step 2: Install the Carrier Frame

1. Position the Frame: Place the Toto wall carrier frame within the wall opening. Ensure it's centered and level.
2. Secure the Frame: Use a drill to screw the frame into the wall studs, ensuring a solid and stable installation.
3. Adjust the Height: Set the desired height for the toilet bowl by adjusting the frame's height settings. Double-check with a level to ensure accuracy.

Step 3: Connect the Plumbing

1. Install the Water Inlet: Connect the water supply line to the inlet on the carrier frame. Ensure it's secure to prevent leaks.
2. Attach the Waste Outlet: Connect the waste outlet from the toilet bowl to the plumbing drain line. Check for a snug fit to avoid leaks.

Step 4: Install the Drywall and Finish

1. Replace the Drywall: Cut a new piece of drywall to fit around the carrier frame. Secure it in place with screws.
2. Apply Finishing Touches: Patch and paint the drywall to match the rest of the wall. Install the flush actuator plate according to the manufacturer's instructions.

Step 5: Attach the Toilet Bowl

1. Mount the Bowl: Align the wall-mounted Toto toilet bowl with the carrier's bolt holes. Slide the bowl onto the bolts and secure it with nuts.
2. Check for Level: Use a level to ensure the toilet bowl is perfectly horizontal. Make any necessary adjustments.
3. Finalize Installation: Tighten all bolts and connections. Test the flush mechanism to ensure everything is functioning correctly.

Final Thoughts

Installing a Toto in-wall toilet carrier requires some planning and precision, but the benefits in terms of space, aesthetics, and functionality make it a worthwhile investment. By following these steps, you can transform your bathroom into a modern, efficient space that meets your needs and enhances your home's value.

Whether you're a seasoned DIY enthusiast or hiring a professional, understanding the installation process will help you make informed decisions and ensure a successful project. With a bit of effort, you can enjoy the sleek design and convenience of a Toto wall-mounted toilet for years to come.
