APPLICATION PURPOSES
• For metal and wood frame walls
• For installation in part- or room-height prewalls
• For installation in room-height partition walls
• For floor constructions 0–20 cm
• For wall-hung WCs
CHARACTERISTICS
• 2025 range
• Statically self-supporting frame, protected against corrosion
with powder coating

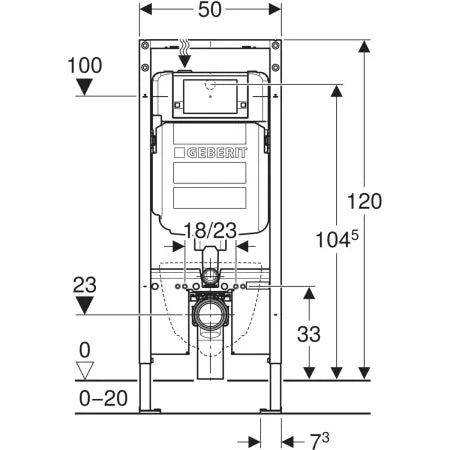

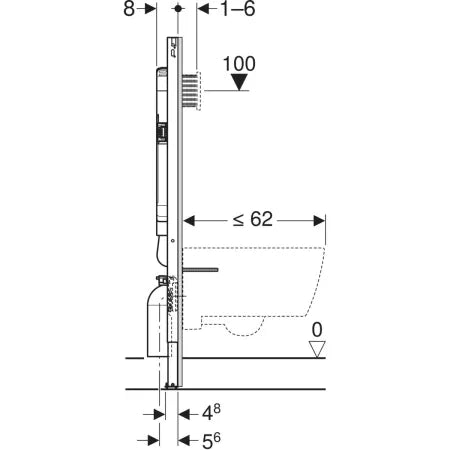

• Frame for wall-hung WCs with connection dimensions as per EN
33 and projection up to 62 cm
• Alternative fastening point for wall anchors
• Frame with ø 9 mm drilling holes for fastening in wood frame
construction
• Frame fulfils standard requirements in accordance with ASME
A112.6.2, ANSI Z124.4
• Foot plates made of plastic
• Foot plate depth suitable for installation in U-profiles UW 50
• Galvanised leg supports protected against corrosion
• Connection bend can be mounted without tools
• Interrupted crossbar enables a front flush depth for the vertical
outlet bend
• Geberit Alpha concealed cistern 8 cm fully insulated against
condensation
• For front actuation, suitable for dual flush
• Immediate post flush possible with factory setting
• Cistern fulfils standard requirements in accordance with ASME
A112.6.2 and ANSI Z124.4
• Flush valve fulfils standard requirements in accordance with
CSA B125.3, ASME A112.19.5, IAPMO PS-50, ASME A112.19.2
in connection with ceramic appliance listed
• Fill valve fulfils standard requirements in accordance with ASSE
1002, CSA B125.3
• Water supply connection on the top left
• Protection box for service opening, can be cut to length,
protects against moisture and dirt
TECHNICAL DATA
Flow pressure 10–1000 kPa
Water temperature max. 25 °C
Flush volume, factory setting 4.8 / 3 l
Product material Steel
Height-adjustable Yes
SCOPE OF DELIVERY
• Water supply connection R 1/2", compatible with MasterFix and
MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• Connection set for WC, ø 90 mm
• Connection bend made of PE-HD, ø 90 mm
• Fastening and protection material
ACCESSORIES
• Geberit sound insulation set for wall-hung WC
• Geberit Duofix fastening material for stud clearance 50–57.5 cm
• Geberit Duofix set of wall anchor extensions
• Geberit Duofix set of foot fastener on rear wall
• Set of wall anchors for single installation, for Geberit Duofix
element for wall-hung WC, with concealed cistern 8 cm
