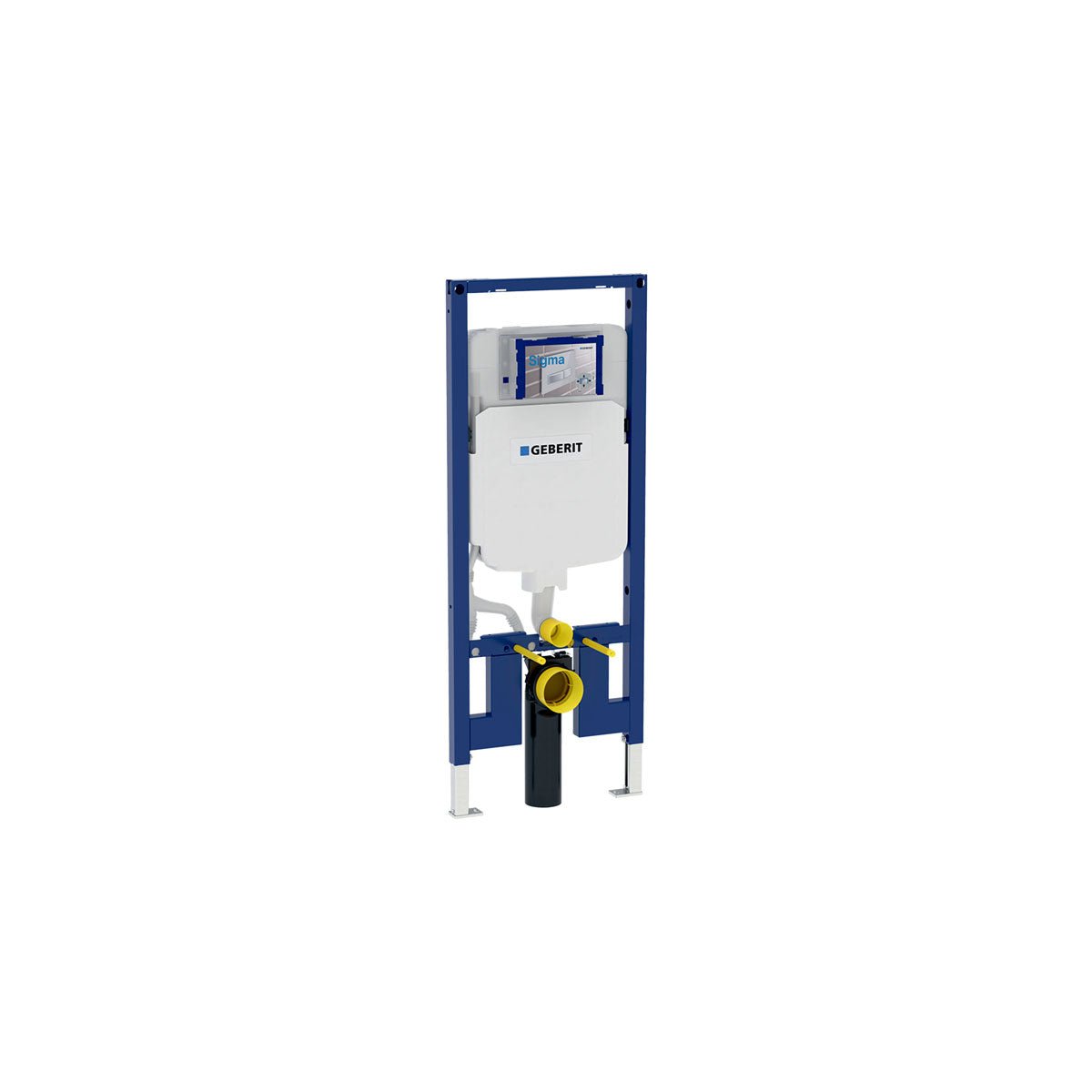

Geberit Duofix In-Wall Carrier for 2x4 Construction – 1.28/0.8 GPF (Model 111.597.00.1)

Overview:
The Geberit Duofix in-wall carrier system with Sigma concealed tank is designed for 2x4 room-height walls. It provides great durability, water efficiency, and modern design options. Ideal for residential or commercial projects where space and aesthetics matter.

Key Features:

• 2x4 Stud Compatibility: Designed for room-height, 2x4 wood or steel partition wall installations.

• High Load Capacity: Supports up to 880 lbs (400 kg), making it suitable for robust and long-term use.

• Concealed Dual-Flush Tank: Fully insulated to prevent condensation and built-in dual-flush mechanism (1.6/0.8 GPF or 1.28/0.8 GPF) for maximum water savings.

• Adjustable Bowl Height: Toilet seat height adjustable from 15" to 19", meeting personal comfort and ADA guidelines.

• Clean, Modern Aesthetic: Allows floor space to remain clear, enabling effortless cleaning and enhanced visual appeal.

• Flush Plate Flexibility: Compatible with all Geberit Sigma series actuator plates and remote flush buttons (sold separately).

• Superior Engineering: Features Geberit's proven fill and flush valve technology—no flappers or chains that wear out over time.

Installation & Included Components:

• Geberit Duofix carrier frame with Sigma concealed tank

• Pre-installed fill and flush valves

• Water supply stop valve

• Drainage elbow

• Mounting hardware

• Ready for connection to water supply, drainage, and venting systems

Note:
A compatible wall-hung toilet bowl and Sigma actuator plate are required to complete installation (sold separately).
